    20KVA~120kVA Modular UPS Systems Online Uninterruptible Power Supply

    Ask Lasest Price
    Brand Name : kimoems
    Model Number : Refer to parameters
    Certification : CE
    Payment Terms : T/T
    Delivery Time : 6 workdays
    • Product Details
    • Company Profile

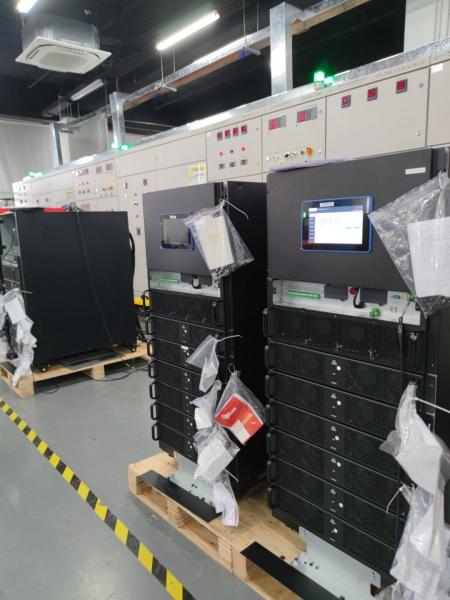

    20KVA~120kVA Modular UPS Systems Online Uninterruptible Power Supply

    (208V) 20~120kVA Modular UPS Power Supply


    Product Introduction

    Power range
    20~120kVA
    Operation
    3P/3P,3P/1P,1P/1P,Online double conversion
    Applications
    Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, etc.
    Characteristics
    Mounted in 19 inch rack, or stand alone.
    7 inch touch LCD, with loT functions.
    High reliability and environment adaptability, with
    protection of components level.
    Extreme high power density,30kW in 2U, friendly
    for space and maintenance.
    Option of 30A charger module for long backup applications.


    Parameters

    ModelKM80/20-LKM120/20-L
    Rate Power80kVA/80kW120kVA/120kW
    Main input
    Input3P5W (3P+N+PE)
    Rate Voltage200/208/220VAC(L-L)
    Rate Freq.50/60Hz
    Input PF>0.99
    Current distortionTHDi<3% (100% Linear load)
    Voltage range166 ~ 261VAC(L-L) full load; 125 ~ 166VAC(L-L) power derate from 100% to 75%
    Freq. range40-70Hz
    Battery
    Rate voltage±120VDC
    Charging capacity20%*Pout
    Charging accuracy±1%
    Bypass
    Rate voltage200/208/220VAC(L-L)
    Voltage rangeRange: -40%~+25%, Settable, default -20%~+15%;
    Overload110%, long time operation; 110%<load<125%, 5 mins; 125%<load<150%, 1 min; >150%, 1 second
    Inverter
    Rate voltage200/208/220VAC(L-L)
    Rate Freq.50/60Hz
    Output PF1
    Voltage accuracy±1.0%
    Load response<5% (20% - 80% -20% step load)
    Recovery time< 20ms (0% - 100% -0% step load)
    Output THDu<1% (linear load), <5% (non-linear load according to IEC 62040-3)
    Overload110%, 1 hour; 125%, 10 mins; 150%, 1 min; >150%, 200ms
    Frequency accuracy0.10%
    Synchronize windowSettable, ±0.5Hz~±5Hz, default ±3Hz
    Slew rateSettable, 0.5Hz/S~5Hz/S, default 0.5Hz/S
    Phase Accuracy120°±0.5°
    System
    EfficiencyNormal Mode up to 94%; Battery Mode up to 94%
    DisplayLED + 7 inch touch LCD
    Certification> SafetyIEC62040-2; IEC62040-1, IEC60950-1
    Certification> EMSIEC62040-4-2(ESD); IEC61000-4-4(EFT); IEC61000-4-5 (Surge)
    IP degreeIP20
    ConfigurationUSB, RS232, RS485, Dry contact, Cold start
    OptionSNMP card, AS400 card, Parallel kit, LBS, Air filter, Bottom entry kit
    Environment0-40°C (operation); -25°C~70°C (storage); 0-95% (Humidity, non-condensing)
    Noise(dB)(1 meter)65dB @ 100% load, 62dB @ 45% load
    Dimentions
    cabinet(WDH)mm482*816*796 (18U, wheels not included)482*816*1018(23U, wheels not included)
    module(WDH)mm440816785 (2U)
    Weight(kg)
    Cabinet113132
    Module23
    Power Module rated capacity20KW
    Statement: The products will continue to be innovative and optimized, which may lead to asynchronized updates of the actual product and promotional materials. Therefore, this document is for reference only and does not constitute any offer or commitment.
