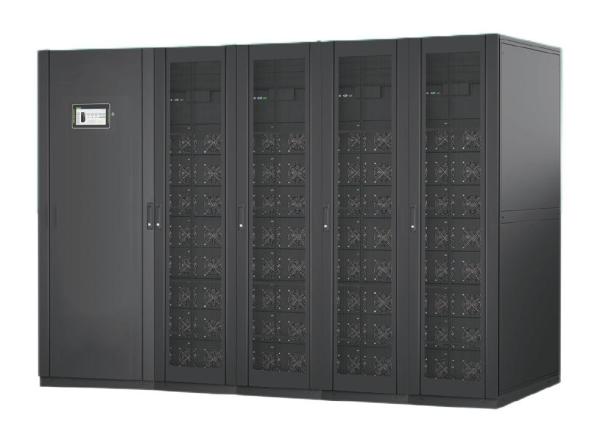

Modular Uninterruptible Power Supply UPS 37.5kw 300kVA-1200kVA Fully Digital Control

Ask Lasest Price
Brand Name :	kimoems or OEM
Model Number :	Refer to parameter
Certification :	CE
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

Modular Uninterruptible Power Supply UPS 37.5kw 300kVA-1200kVA Fully Digital Control

(208V)300kVA To 1200kVA Modular UPS

37.5kw Power Module

Parameters

Model	KM300-L	KM600-L	KM900-L	KM1200-L
Rate Power	300kVA	600kVA	900kVA	1200kVA
Input	3P5W (3P+N+PE)	3P5W (3P+N+PE)	3P5W (3P+N+PE)	3P5W (3P+N+PE)
Input Rate Voltage	200/208/220VAC(L-L)	200/208/220VAC(L-L)	200/208/220VAC(L-L)	200/208/220VAC(L-L)
Input Rate Freq.	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Input PF	>0.99	>0.99	>0.99	>0.99
Input Current distortion	THDi<3%(100% Linear load)	THDi<3%(100% Linear load)	THDi<3%(100% Linear load)	THDi<3%(100% Linear load)
Input Voltage range	166 ~ 261VAC(L-L) full load; 125 ~ 166 VAC (L-L) power derate from 100% to 75%	166 ~ 261VAC(L-L) full load; 125 ~ 166 VAC (L-L) power derate from 100% to 75%	166 ~ 261VAC(L-L) full load; 125 ~ 166 VAC (L-L) power derate from 100% to 75%	166 ~ 261VAC(L-L) full load; 125 ~ 166 VAC (L-L) power derate from 100% to 75%
Input Freq. range	40-70Hz	40-70Hz	40-70Hz	40-70Hz
Battery Rate voltage	±120VDC	±120VDC	±120VDC	±120VDC
Battery Charging capacity	20%*Pout	20%*Pout	20%*Pout	20%*Pout
Battery Charging accuracy	±1%	±1%	±1%	±1%
Bypass Rate voltage	200/208/220VAC(L-L)	200/208/220VAC(L-L)	200/208/220VAC(L-L)	200/208/220VAC(L-L)
Bypass Voltage range	Range: -40%~ +25%, Settable, default -20%~ +15%	Range: -40%~ +25%, Settable, default -20%~ +15%	Range: -40%~ +25%, Settable, default -20%~ +15%	Range: -40%~ +25%, Settable, default -20%~ +15%
Bypass Overload	110%, long time operation 110%< load <125%, 5 mins 125%<load <150%,1 min >150%,1 second	110%, long time operation 110%< load <125%, 5 mins 125%<load <150%,1 min >150%,1 second	110%, long time operation 110%< load <125%, 5 mins 125%<load <150%,1 min >150%,1 second	110%, long time operation 110%< load <125%, 5 mins 125%<load <150%,1 min >150%,1 second
Inverter Rate voltage	200/208/220VAC(L-L)	200/208/220VAC(L-L)	200/208/220VAC(L-L)	200/208/220VAC(L-L)
Inverter Rate Freq	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Inverter Output PF	1	1	1	1
Inverter Voltage accuracy	±1.0%	±1.0%	±1.0%	±1.0%
Inverter Load response	<5% (20% - 80% -20% step load)	<5% (20% - 80% -20% step load)	<5% (20% - 80% -20% step load)	<5% (20% - 80% -20% step load)
Inverter Recovery time	<20ms (0% - 100% -0% step load)	<20ms (0% - 100% -0% step load)	<20ms (0% - 100% -0% step load)	<20ms (0% - 100% -0% step load)
Inverter Output THDu	<1%(Linear load),<5% (non-Linear load according to IEC 62040-3)	<1%(Linear load),<5% (non-Linear load according to IEC 62040-3)	<1%(Linear load),<5% (non-Linear load according to IEC 62040-3)	<1%(Linear load),<5% (non-Linear load according to IEC 62040-3)
Inverter Overload	110%,1 hour; 125%,10 mins; 150%,1 min; >150%,200ms	110%,1 hour; 125%,10 mins; 150%,1 min; >150%,200ms	110%,1 hour; 125%,10 mins; 150%,1 min; >150%,200ms	110%,1 hour; 125%,10 mins; 150%,1 min; >150%,200ms
Inverter Frequency accuracy	0.1%	0.1%	0.1%	0.1%
Inverter Synchronize window	Settable, ±0.5Hz-±5Hz, default ±3Hz	Settable, ±0.5Hz-±5Hz, default ±3Hz	Settable, ±0.5Hz-±5Hz, default ±3Hz	Settable, ±0.5Hz-±5Hz, default ±3Hz
Inverter Slew rate	Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S	Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S	Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S	Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S
Inverter Crest factor	3:1	3:1	3:1	3:1
Inverter Phase Accuracy	120°±0.5°	120°±0.5°	120°±0.5°	120°±0.5°
System Efficiency	Normal Mode up to 93%; Battery Mode up to 93%	Normal Mode up to 93%; Battery Mode up to 93%	Normal Mode up to 93%; Battery Mode up to 93%	Normal Mode up to 93%; Battery Mode up to 93%
System Display	LED + 10 inch touch LCD	LED + 10 inch touch LCD	LED + 10 inch touch LCD	LED + 10 inch touch LCD
System Certification- Safety	IEC62040-1; IEC60950-1	IEC62040-1; IEC60950-1	IEC62040-1; IEC60950-1	IEC62040-1; IEC60950-1
System Certification- EMS	IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge)	IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge)	IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge)	IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge)
System IP degree	IP20	IP20	IP20	IP20
System Configuration	USB, RS232, RS485, Dry contact, Cold start, Air filter	USB, RS232, RS485, Dry contact, Cold start, Air filter	USB, RS232, RS485, Dry contact, Cold start, Air filter	USB, RS232, RS485, Dry contact, Cold start, Air filter
System Option	SNMP card, AS400 card, Parallel kit, SPD, LBS	SNMP card, AS400 card, Parallel kit, SPD, LBS	SNMP card, AS400 card, Parallel kit, SPD, LBS	SNMP card, AS400 card, Parallel kit, SPD, LBS
System Environment	0-40℃ (operation); -25℃-70℃ (storage); 0-95% (Humidity, non-condensing )	0-40℃ (operation); -25℃-70℃ (storage); 0-95% (Humidity, non-condensing )	0-40℃ (operation); -25℃-70℃ (storage); 0-95% (Humidity, non-condensing )	0-40℃ (operation); -25℃-70℃ (storage); 0-95% (Humidity, non-condensing )
System Noise(dB)(1 meter)	72dB @ 100% load, 69dB @ 45% load	72dB @ 100% load, 69dB @ 45% load	72dB @ 100% load, 69dB @ 45% load	72dB @ 100% load, 69dB @ 45% load
Dimension Cabinet(WDH)mm	120010002000	200010002000	280010002000	360010002000
Dimension Module(WDH)mm	442659174	442659174	442659174	442659174
Weight(kg) Cabinet	350	600	850	1100
Weight(kg) Module	41	41	41	41
Power Module rated capacity	37.5KW	37.5KW	37.5KW	37.5KW
