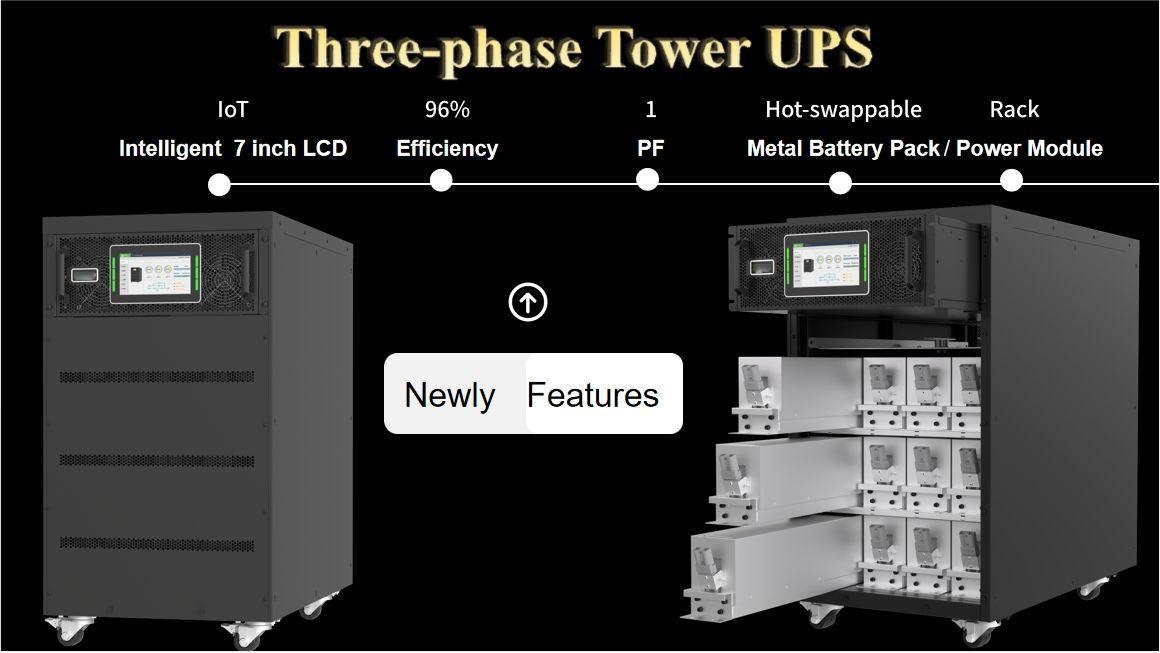

    Online Double Conversion 3 Phases UPS Tower Type power supply 208V 10~40kVA

    (208V) 10~40kVA 3 Phases Tower UPS Internal 7/9Ah Modular Battery Strips


    Product Introduction

    Power range
    10~40kVA
    Operation
    3P/3P, Online double conversion
    Applications
    Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, etc.
    Characteristics
    7 inch touch LCD with loT functions
    High power density, small volume.
    High reliability and environment adaptibility.
    Optional full metal battery strips, with internal batteries
    capable of configuring up to 16 battery module strips.


    Parameters

    ModelTT010B-L-120TT015B-L-120TT020B-L-120TT030B-L-160TT040B-L-160
    TT010L-LTT015L-LTT020L-LTT030L-LTT040L-L
    Rate Power10kVA15kVA20kVA30kVA40kVA
    Main input
    Input3P5W (3P+N+PE)
    Rate Voltage200/208/220VAC(L-L)
    Rate Freq.50/60Hz
    Input PF>0.99
    Current distortionTHDi<3% (100% Linear load)
    Voltage range166 ~ 261VAC(L-L) full load; 125 ~ 166VAC(L-L) power derate from 100% to 75%
    Freq. range40-70Hz
    Battery
    Rate voltage±120VDC
    ModelUPS with internal batteries,12VDC/7~9Ah
    UPS for external batteries,Settable
    Internal BAT Quantity120PCS160PCS
    External BAT QuantityDepend on external battery,40PCS
    Charging capacity20%*Pout
    Charging accuracy±1%
    Bypass
    Rate voltage200/208/220VAC(L-L)
    Voltage rangeRange: -40%~ +25%, Settable, default -20%~ +15%
    Frequency range50/60Hz, Settable: ±1Hz, ±3Hz, ±5Hz
    Inverter
    Rate voltage200/208/220VAC(L-L)
    Rate Freq.50/60Hz
    Output PF1
    Voltage accuracy±1.0%
    Load response<5% (20% - 80% -20% step load)
    Recovery time< 20ms (0% - 100% -0% step load)
    Output THDu<1% (linear load), <5% (non-linear load according to IEC 62040-3)
    Overload110%, 1 hour; 125%, 10 mins; 150%, 1 min; >150%, 200ms
    Frequency accuracy0.10%
    Synchronize windowSettable, ±0.5Hz~±5Hz, default ±3Hz
    Slew rateSettable, 0.5Hz/S~3Hz/S, default 0.5Hz/S
    Crest factor3:01
    Phase Accuracy120°±0.5°
    System
    EfficiencyNormal Mode up to 94%; Battery Mode up to 94%
    DisplayLED + 7 inch touch LCD
    Certification> SafetyIEC62040-2; IEC62040-1, IEC60950-1
    Certification> EMSIEC62040-4-2(ESD); IEC61000-4-2(RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge)
    IP degreeIP20
    ConfigurationUSB, RS232, RS485, Dry contact, Air filter
    OptionSNMP card, AS400 card, Parallel kit, LBS, Cold start
    Environment0-40°C (operation); -25°C~70°C (storage); 0-95% (Humidity, non-condensing)
    Dimension
    (W*D*H) mm
    Internal BAT500*864*922500*865*1250
    External BAT250*530*650250*782*650
    Weight(kg)
    Internal BAT143153155200
    External BAT43536672
    Statement: The products will continue to be innovative and optimized, which may lead to asynchronized updates of the actual product and promotional materials. Therefore, this document is for reference only and does not constitute any offer or commitment.
