Integrated / Split Chilled Water Precision Cooling Units For Server Rooms

Ask Lasest Price
Brand Name :	kimoems or OEM
Model Number :	Inquire manufacture
Certification :	CE
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

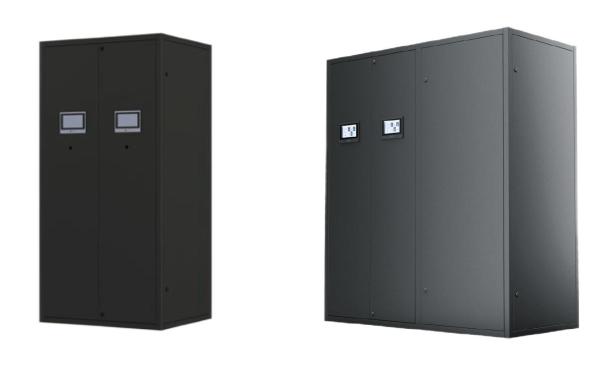

Integrated / Split Chilled Water Precision Cooling Units For Server Rooms

Integrated/split Chilled Water Precision Cooling

Product Introduction

KMH series chiller provides stable chilled water with precise temperature control, maintaining accuracy within ±1℃. Its dual-system design ensures redundancy and flexible output adjustment, enhancing energy efficiency. Available in split or integrated configurations, it offers flexible layout options to optimize space.

The KMH series is ideal for cooling data center and medical equipment, as well as other environments requiring chilled water cooling

Product Advantages

High Efficiency

High energy efficiency ratio, with the unit's energy efficiency ratio ≥3.0, and the annual energy efficiency ratio ≥3.6.

Precision Control

Accurate, safe, and energy-saving control logic ensures that the target chilled water temperature control accuracy reaches ±1℃. Dual-system design, each system operates independently, flexibly matches the load, and serves as a backup for each other, ensuring reliable operation. The system has a wide stable operating range and can operate safely and reliably in outdoor ambient temperatures ranging from -20℃ to +45℃.

High-Quality Components

Internationally renowned brand fully enclosed scroll maintenance-free compressors. High head, stable dedicated pumps. Efficient and energy-saving plate heat exchangers.

Structural Optimization

The unit has a large cooling capacity but a small footprint, saving equipment space.

Easy Maintenance

The unit's internal parts have strong versatility, saving users money. Reserved maintenance space reduces maintenance difficulty.

User Interface

The controller uses a 7-inch true color touch screen, providing users with an interface for inquiry, setting, monitoring, and maintenance.

High-Quality Performance

Operating Environment	Working Voltage and Frequency: 380V ±10% 50 ±3HZ Environmental Temperature Range: -20–50℃ Chilled Water Inlet Temperature Range: 10–20℃
Cooling Capacity Range	Dual System: 40–85kW
Energy Efficiency Ratio	≥3.0, Annual Energy Efficiency Ratio ≥3.6
Temperature Control	Outlet Water Temperature: 5–15 ±1℃
Protection Functions	System Protection: High-pressure protection, Low-pressure protection, Water flow protection, Pump overload protection, etc.
Monitoring Functions	Supports RS485 communication port, MODBUS-RTU protocol (standard) Supports Ethernet interface, MODBUS-TCP, SNMP, HTTP protocols (optional)
Noise	Split Indoor Unit Noise: ≤70dB, Outdoor Unit Noise: 45–60dB One-Body Unit Noise: ≤72dB
IP Rating	Indoor Unit: IPX0, Outdoor Unit: IP54
Protection Against Electric Shock	Class I
Fire Resistance Rating	Grade A

Display Specifications

Standard 7-inch color screen

Display Content

1. Real-time operating status of the unit

2. Automatic maintenance prompts, fault diagnosis, component alarm information, etc.

3. Graphical display of chilled water temperature curves, output status of all components, and component operation timing

Information Recording Time

1. Operation time of the unit and components

2. All operational actions of the unit

3. 500 historical alarm records

Other Features

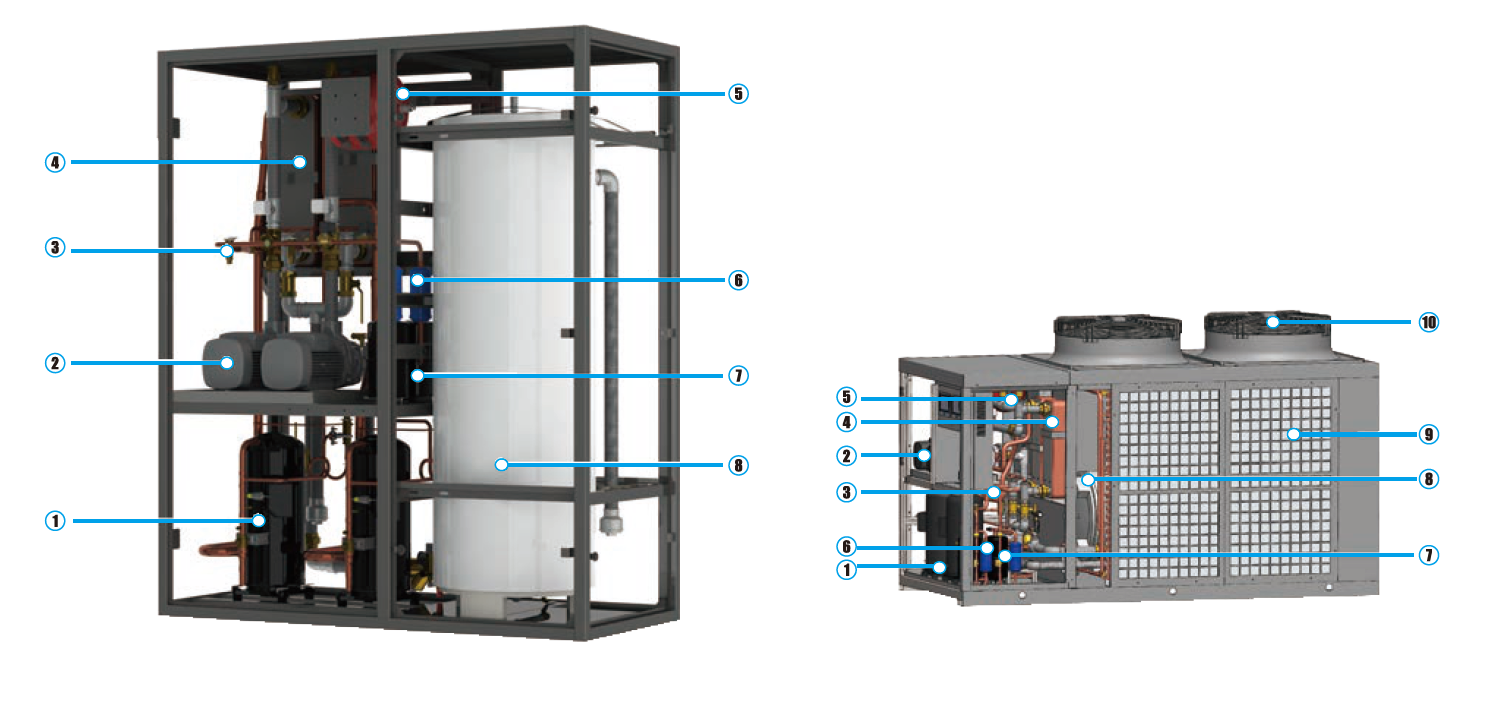

Set-point control

1. Compressor

Domestic and international well-known brands, with a COP value greater than 4.0. Equipped with safety devices to ensure high efficiency, low noise, and long service life.

2. Chilled Water Pump

Domestic and international well-known brands, featuring high efficiency, low noise, and high head.

3. Expansion Valve

Domestic and international well-known brands, with excellent performance, high sensitivity, and easy replacement.

4. Plate Heat Exchanger

Domestic and international well-known brands, with high heat exchange efficiency, resistant to scaling, and low risk of ice blockage.

5. Expansion Tank

Domestic and international well-known brands, with stable performance and reliable quality.

6. Drier Filter

Features efficient acid removal, filtration, and drying capabilities to ensure reliable system operation.

7. Receiver

A unique receiver design ensures normal system operation in any environment.

8. Water Tank

An insulated water tank ensures adequate circulating water in case of sudden water shortages.

9. Condenser

Advanced design with anti-corrosion properties, ensuring long life and high efficiency. Fully compatible with other refrigeration system components.

10. Condenser Fan

Uses well-known brands with advantages such as high efficiency, energy saving, and low noise.
