    In Row Precision Cooling 10-65kw Air Cooled Chilled Water Variable Frequency

    Ask Lasest Price
    Brand Name : kimoems or OEM
    Model Number : Refer to parameters
    Certification : CE
    Payment Terms : T/T
    • Product Details
    • Company Profile

    In Row Precision Cooling 10-65kw Air Cooled Chilled Water Variable Frequency

    Air-cooled Chilled Water Variable Frequency Row Precision Cooling 10-65kw

    Product Advantages

    Fast Response
    • Proximity Cooling: Monitors thermal load changes in real-time and adjusts cooling output to match load requirements.
    Flexible Compatibility
    • Units come with upper/lower wiring and piping interfaces, allowing flexible installation based on site conditions.
    • Customizable appearance and dimensions to match server cabinets.
    • Units can be placed in the middle or ends of server rows for optimal cooling.
    Horizontal Airflow
    • Uses front-to-back space for return and supply air, eliminating the need for raised floor plenums or ductwork.
    Multiple Airflow Configurations
    • Supports open aisle, cold aisle containment, hot aisle containment, and cabinet-level sealing.
    • Shortens airflow distance to reduce energy consumption.
    Hot-Swappable EC Fans
    • EC fans with 0–100% adjustable airflow, featuring safe hot-swappable design for uninterrupted maintenance.
    Multiple Communication and Monitoring Interfaces
    • Provides RS485 interface, with optional network connectivity.
    Multiple Temperature Monitoring
    • Equipped with multiple temperature sensors to monitor temperatures at different locations in the air conditioner or server cabinet, ensuring optimal cooling performance.
    Comprehensive Temperature and Humidity Control
    • Advanced temperature, humidity, and air cleanliness control, along with device system management, ensures optimal data center operation.

    In Row Precision Cooling 10-65kw Air Cooled Chilled Water Variable Frequency

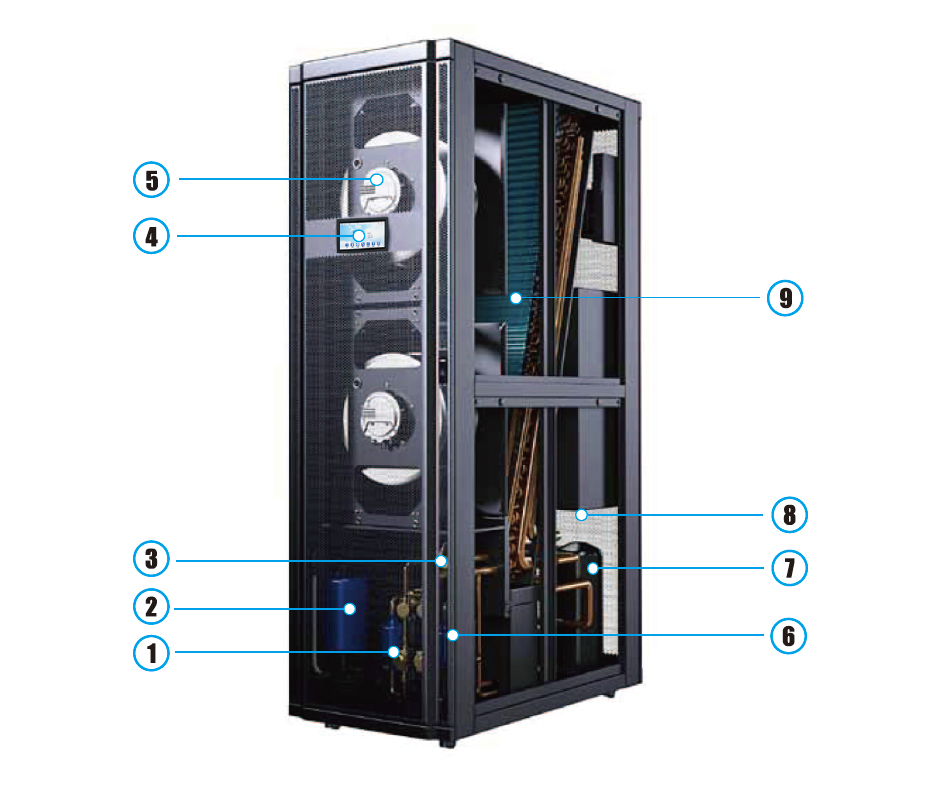

    1. Desiccant Filter
      • High efficiency in acid removal, filtration, and drying. Ensures reliable system operation.
    2. Humidifier
      • Electrode humidifier using tap water. Features automatic cleaning and rapid generation of pure steam. Maintenance can be performed without downtime.
    3. Expansion Valve
      • Uses high-quality brands from domestic and international markets. Offers superior performance, high sensitivity, and easy replacement.
    4. Smart Control System
      • 7-inch touchscreen for operation status and alarm display. Advanced user interface for simple, fast operation. Professional, energy-efficient, and intelligent functionality.
    5. High-Efficiency Fan
      • Rear-inclined EC fan with high efficiency, energy savings, and low noise. Features continuously adjustable airflow.
    6. Liquid Receiver
      • Large-capacity design ensures normal operation in both high- and low-temperature environments.
    7. Scroll Compressor
      • Uses internationally renowned brands with a COP value greater than 4.0. Features high efficiency, low noise, and long lifespan. Equipped with safety devices for reliable performance.
    8. Air Filter
      • Metal-framed G4 standard filter can be repeatedly flushed to reduce operating costs.
    9. Evaporator
      • Features hydrophilic fins, inner-grooved copper tubes, and efficient design. Resistant to corrosion, with a long lifespan and high efficiency. Fully compatible with other refrigeration system components.
    KMU.I Chilled Water Unit Specifications
    ModelKMU250IBE3-R-HKMU320IBE3-R-HKMU320IBE6KMU400IBE6KMU500IBE6KMU650IBE6
    Cooling Capacity (1)
    Total Cooling Capacity (38°C–20%RH)26.20 kW31.10 kW32.10 kW40.30 kW50.20 kW65.47 kW
    Sensible Cooling Capacity (38°C–20%RH)26.20 kW31.10 kW32.10 kW40.30 kW50.20 kW65.47 kW
    Water Flow Rate (38°C–20%RH)4.51 m³/h5.36 m³/h5.53 m³/h6.94 m³/h8.65 m³/h11.28 m³/h
    Pressure Drop58.8 kPa60.6 kPa60.3 kPa66.8 kPa74.6 kPa86.5 kPa
    Fan
    Number552223
    Airflow4500 m³/h4800 m³/h4800 m³/h6000 m³/h8400 m³/h12000 m³/h
    Power Consumption1.05 kW1.10 kW1.20 kW1.55 kW1.80 kW2.70 kW
    Humidifier (Optional)
    Maximum Steam Production//5 kg/h5 kg/h5 kg/h5 kg/h
    Rated Power//3.75 kW3.75 kW3.75 kW3.75 kW
    Rated Current//6.00 A6.00 A6.00 A6.00 A
    Electric Heater (Optional)
    Rated Power//6.00 kW6.00 kW6.00 kW9.00 kW
    Rated Current//9.10 A9.10 A9.10 A13.70 A
    Dimensions and Weight
    Width300 mm300 mm600 mm600 mm600 mm600 mm
    Depth (2)1200 mm1200 mm1200 mm1200 mm1200 mm1200 mm
    Height (3)2000 mm2000 mm2000 mm2000 mm2000 mm2000 mm
    Weight172 kg181 kg230 kg253 kg275 kg288 kg
    Electrical Parameters
    Power Supply220V-50Hz-1F+N+PE220V-50Hz-1F+N+PE380V-50Hz-3F+N+PE380V-50Hz-3F+N+PE380V-50Hz-3F+N+PE380V-50Hz-3F+N+PE
    Full Load Current5.6 A5.9 A17.2 A17.9 A18.3 A24.5 A
    Circuit Breaker (4)10 A10 A25 A25 A25 A32 A
    Indoor Wiring Specifications3*2.5 mm²3*2.5 mm²5*4 mm²5*4 mm²5*4 mm²5*6 mm²
    Notes:
    Cooling Capacity: Measured at 38°C ambient temperature and 20% relative humidity.
    Depth: Depth of the unit.
    Height: Height of the unit.
    Circuit Breaker: Specifications for circuit breakers.
